This guide explains how to measure for pinch pleat drapes without guesswork, so the finished curtains sit neatly, cover the window properly, and hang with the right amount of structure. I focus on the measurements that actually matter in a real UK home: the track or pole, the drop, the pleat fullness, and the small allowances that stop an order from coming back too short, too flat, or awkward at the edges.
The measurements that decide the final fit
- Measure the hardware, not just the window. For pinch pleats, the pole or track is the true reference point.
- Use the shortest drop measurement. Floors, sills, and old walls are rarely perfectly level.
- Let the pleat style guide the fullness. Single, double, and triple pinch pleats do not need the same fabric behaviour.
- Do not add width blindly. Some made-to-measure systems build fullness into the curtain for you.
- Record everything in cm. UK suppliers usually work cleanly with metric measurements, which reduces conversion errors.
- Measure once, check twice. It is cheaper to correct a tape measure than to remake lined curtains.

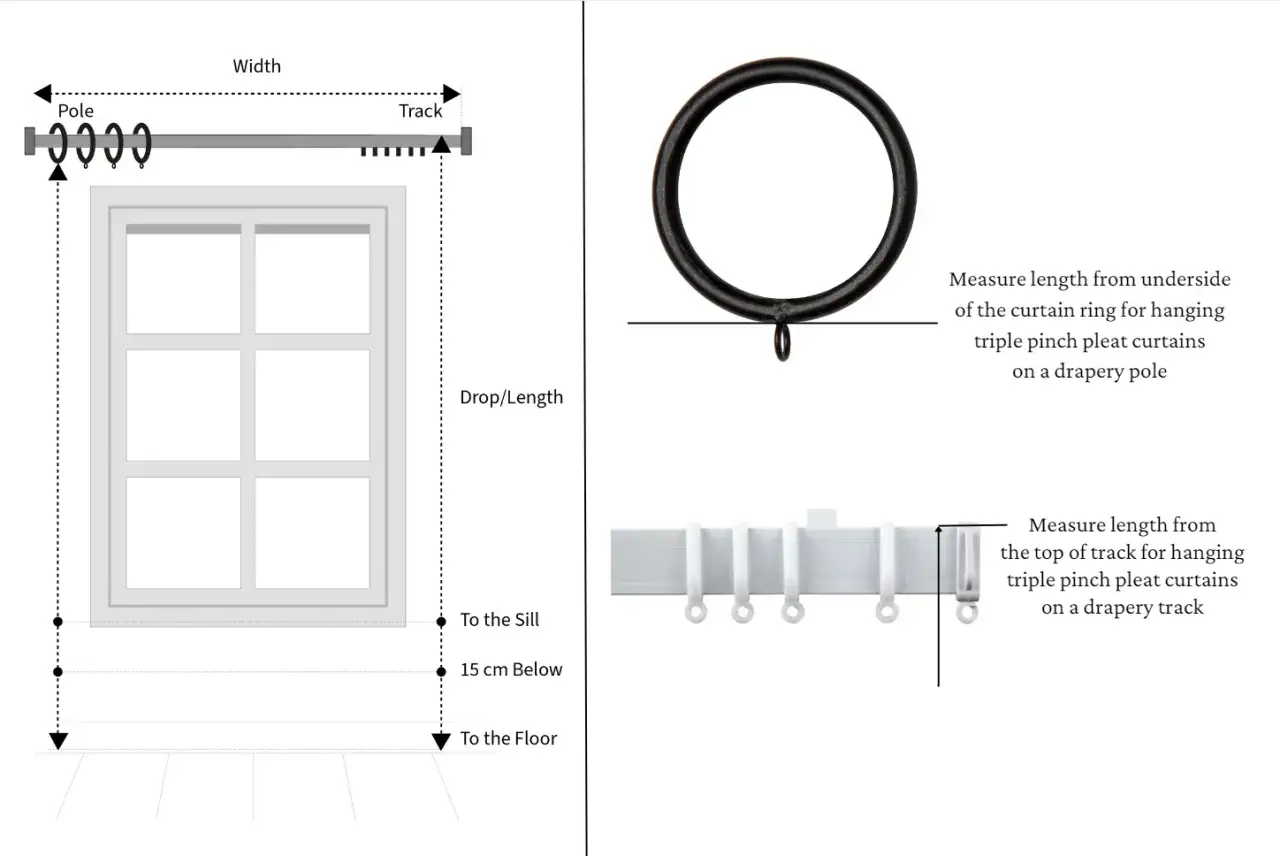

Start with the hardware, not the window glass
I always begin with the fitting already in place if possible, because pinch pleat curtains are designed to hang from a pole or track, not from the bare opening. That means the correct width is the usable span between the end points of the hardware, not the width of the glass or even the inside of the recess.
| Situation | What to measure | Why it matters |
|---|---|---|
| Pole already fitted | Measure between the finials | This is the visible working width the curtains need to cover |
| Track already fitted | Measure end to end | The track defines where the curtain hangs and how far it can travel |
| No hardware yet | Measure the window and add side allowance | You need enough extra width for stack-back, brackets, and light control |
If you do not have the pole or track installed yet, I would treat the window size as the starting point only. In practice, the curtain line should usually extend beyond the frame so the fabric can stack off to the sides and not steal daylight when it is open. For a straightforward straight window, a sensible starting allowance is around 20 cm on each side, with a little more if you want stronger blackout performance or a fuller visual frame.
That hardware-first approach saves a lot of mistakes, and once it is clear, the next question is how much width the curtain should actually occupy.
Measure the width for the full, balanced look
Pinch pleats already build structure into the header, so width is not the same as a loose gathered curtain. This is where people often overcorrect: they either order too little fabric and end up with a flat look, or they add fullness twice and get something overly bulky.
For made-to-measure pinch pleat curtains, I normally follow the supplier’s finished-width rule rather than trying to invent my own. Many UK systems treat the track or pole width as the width to work from, then calculate the pleating and any small allowance internally. If the order form asks for the track width, give the true hardware measurement and stop there unless the guide tells you otherwise.
| Pinch pleat type | Typical look | Practical fullness range | Best use |
|---|---|---|---|
| Single pinch pleat | Cleaner and slightly lighter at the top | About 1.5x to 2x fabric fullness | Smaller rooms, slimmer windows, a less formal finish |
| Double pinch pleat | Balanced, classic, and well controlled | About 2x fabric fullness | Most living rooms and bedrooms |
| Triple pinch pleat | More luxurious and more sculpted | About 2.5x fullness or more | Formal spaces, tall windows, heavier fabrics |
The important distinction is this: fabric fullness is not the same as finished curtain width. Fullness is the amount of fabric used to create the pleats, while finished width is what the curtain covers once it hangs. If you are ordering from a made-to-measure service, it may already calculate the pleat structure for you. If you are sewing or commissioning something bespoke, you need to plan the fullness yourself before cutting fabric.
Another small but important point is stack-back. Pinch pleats form a neater stack than many casual headings, but they still need room at the sides when open. If your window is narrow and wall space is limited, I would usually choose a less bulky pleat style rather than forcing a grander heading into a tight frame. Once the width logic is right, the drop becomes much easier to measure accurately.

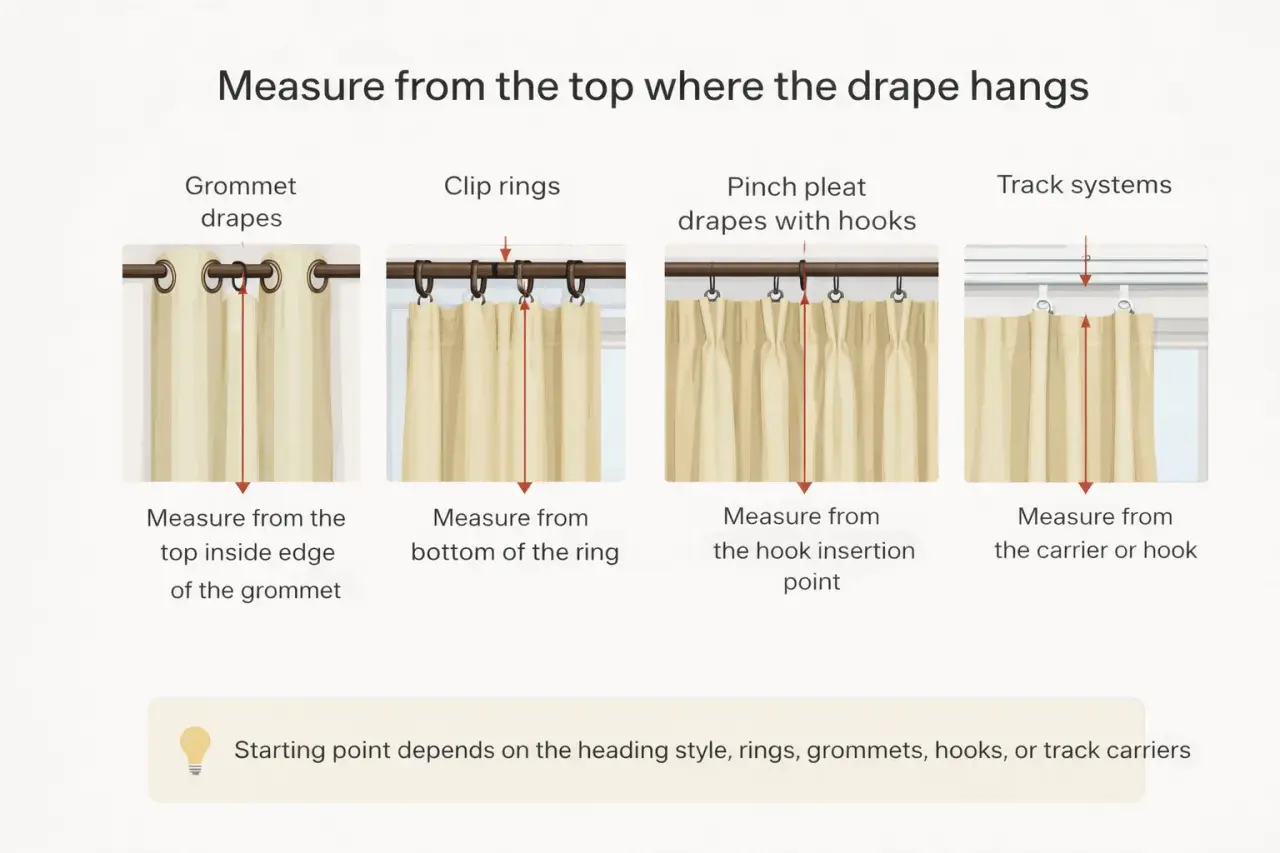

Measure the drop from the exact point the curtain will hang
Drop is where a lot of good curtains go wrong. Measure too high and they skim the floor awkwardly; measure too short and they look as if they were ordered for a different room. For pinch pleat curtains, the starting point depends on the fitting system:
- If the curtain hangs from rings on a pole, measure from the underside of the ring to where you want the hem to finish.
- If it hangs from a track, measure from the hook or glider position if that is how the supplier defines the drop.
- If the supplier says to measure from the top of the pole or track, follow that instruction exactly, because different systems deduct different amounts in production.
I also measure the drop in three places: left, middle, and right. In older homes, the floor can slope by more than you expect, and a curtain that is perfect at the centre can drag at one side. The shortest measurement is usually the one to trust, especially for floor-length curtains.
| Drop style | How it should finish | What it suits best |
|---|---|---|
| Sill length | Just below or just above the sill | Practical kitchens and bathrooms |
| Below-sill length | Several centimetres below the sill | Casual rooms where you want more coverage |
| Floor-kissing | About 1 cm above the floor | The cleanest tailored look for living rooms and bedrooms |
| Puddled | Fabric rests on the floor | A softer, more decorative result |
Match the pleat style to the look you want
Measuring is not only about fit; it is also about behaviour. A single pinch pleat will sit differently from a triple pinch pleat, and that changes how much room the curtains need when they are open, how formal they feel, and how much fabric the final order will use.
Here is the simplest way I think about it: single pinch pleats are leaner, double pleats are the most balanced, and triple pleats are the richest. If you want the curtains to feel tailored rather than fussy, double pinch pleat is usually the easiest place to land. If you want more drama and a stronger hotel-style finish, triple pleat earns its keep, but it needs more space and more fabric.
- Single pinch pleat works well when the window is modest or the room is tight on wall space.
- Double pinch pleat gives the most versatile result for everyday living spaces.
- Triple pinch pleat suits taller rooms, heavier fabrics, and a more formal interior.
If you are aiming for a more sustainable order, this choice matters too. The fuller the heading, the more fabric you need, and the more important it is to get the measurements right the first time. A well-chosen double pleat in the correct width often looks better than an over-ambitious triple pleat squeezed into the wrong proportions. Once the style is settled, the actual measuring process becomes a controlled checklist rather than a guess.
Use a clean measuring routine before you place the order
When I measure curtains for a client or for my own home, I use the same routine every time. It is boring, but it works, and boring is exactly what you want from measurements.
- Fit the pole or track first if you can. That removes a lot of ambiguity.
- Use a metal tape measure, not a soft tailor’s tape that can flex.
- Measure width once, then repeat it to confirm the number.
- Measure the drop on the left, centre, and right.
- Write everything down in centimetres and note whether the supplier wants width, finished width, or track width.
- Record any awkward details, such as radiators, boxed pipes, sloping floors, or a bay window.
If a supplier asks for exact track width, finished drop, or centre-drop measurements, I follow their wording exactly. That may sound obvious, but it prevents the most common ordering error: using the window measurement when the order system is actually built around the hardware measurement. It is a small difference on paper and a costly one in fabric.
Before I approve an order, I also ask one final question: where will the curtain stack when it is open? If the stack space is too tight, the room will feel cluttered even if the numbers are technically correct. That is why the last check is always visual as well as numerical.
The mistakes that most often ruin the finish
The biggest errors are usually not dramatic; they are small, repeatable, and expensive. I see the same ones again and again, and most of them are easy to avoid if you know what to look for.
- Measuring the glass instead of the hardware. The curtain needs to hang from the pole or track span.
- Forgetting the finials or brackets. Decorative ends are not part of the usable width.
- Measuring only once. A second reading catches slips of the tape and bad assumptions.
- Ignoring uneven floors. One side can be noticeably lower in older UK houses.
- Adding fullness twice. Some made-to-measure systems already account for pleating.
- Ordering before the track is installed. That leaves too much room for error.
- Choosing a drop that is too short. Too-short curtains look accidental, not tailored.
The fix is rarely complicated. Slow down, check the supplier’s measurement wording, and write the numbers in a way that makes sense later, not just in the moment. If the window is unusually wide, a bay, or fitted with a ceiling track, I would strongly consider professional measuring because the risk of a costly remake rises quickly. Once those traps are out of the way, the final result feels much more deliberate.
The small decisions that make pinch pleats look tailored
The best pinch pleat curtains are not only well measured; they are well considered. A lining that suits the room, a drop that clears the floor cleanly, and a width that lets the pleats fall naturally do more for the finished look than any decorative trick. In a practical sense, accurate measuring also reduces waste, which matters if you are choosing linen, cotton, or other natural fabrics and want to avoid over-ordering.
For a typical UK home, my rule is simple: measure the hardware, check the drop in three places, choose the fullness that matches the room, and let the supplier handle the pleat maths unless you are making the curtains yourself. If you do that, pinch pleat drapes will hang with the kind of quiet precision that makes a room feel finished rather than merely covered.
That is the difference between curtains that almost fit and curtains that look made for the space from the start.
